Two Sided LED Underground Light Constant Current Output 24V 120V 240V PVC Sleeve
Quick Details
1. Power:2W
2. Voltage:24V,120V,240V
3. Color:R/G/B/Y//WW/CW/W
4. Light Size:Φ70mm x H70.5mm
5. Lighting Way:Side Lighting
6. Beam Angle:30°
7. Material:304/316 stainless steel + Die-casting aluminum
8. Warranty:Two years
Technical Datas
| Model No. | AL-1E2B |
| Input Voltage | 24V,120V,240V |
| Power | 2W |
| Light Size | Φ70mm x H70.5m |
| Sleeve Size | Φ65mm x H102m |
| Color | R/G/B/Y/Amber/W/CW/WW |
| Color Temperature | 2700K~6500K |
| LED Chip | CREE 1W/3W high power LED |
| LED Qty | 1pcs |
| Beam Angle | 15°/30°/45°/60° |
| Dimmable | YES |
| IP Grade | IP67 |
| Weight | 0.75Kg |
| Front Cover | 304 / 316 Stainless Steel |
| Lighting Way | Side Lighting |
| Housing | Die-casting aluminum |
| Sleeve | PVC |
| Carton Package Dimension | 27 x 27 x 29CM/8pcs |
| Carton Package Weight | 6Kg |
| Certification | CE,RoHS |
| Warranty | 2/3years |
Material & Manufacturing Technique
Housing:12# Die-casting grey powder coated aluminum
Front cover:stainless steel sus316#.
Loading Capacity:>2000Kg
Cable gland:IP68 PG-11 copper with nickel-coated.
Gasket:Molding shaped silicone seal
Driver:Constant current output
Applicaation environment: -20℃-40℃
Power cable: H05RN-F 3x1.0mm² L=0.5M(High Voltage)
Mounting Sleeve:012PVC

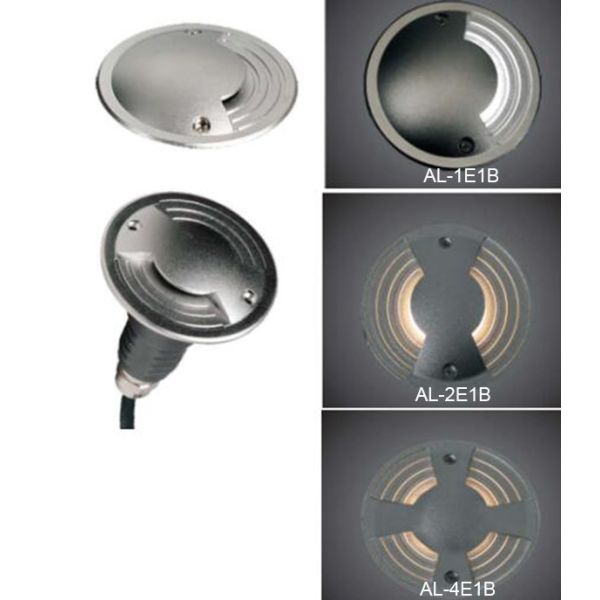

Model Information
| Model No. | Color | Power | Lighting Way |
| AL-1E2BR02 | R/G/B/Y/W/CW/WW | 2W | One-Side-Lighting |
| AL-1E2BR05 | RGB 3in1 | 2W | One-Side-Lighting |
| AL-2E2BR02 | R/G/B/Y/W/CW/WW | 2W | Two-Side-Lighting |
| AL-2E2BR05 | RGB 3in1 | 2W | Two-Side-Lighting |
| AL-4E4BR02 | R/G/B/Y/W/CW/WW | 2W | Four-Side-Lighting |
| AL-4E4BR05 | RGB 3in1 | 2W | Four-Side-Lighting |
Competitive Advantage
1. 304/316 Stainless steel front cover,die-casting aluminum lamp housing,good heat dissipation.
2. R/G/B/Y/W/CW/WW/RGB color optional,meet different lighting design.
3. Low voltage 24V,high voltage 120V-240V optional.
4. One/Two/Four side-lighting,choose the most appropriate way to light the building.
Dimension

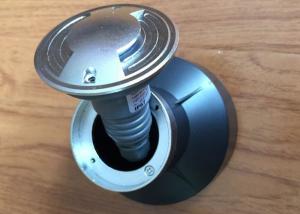

Side Lighting LED Underground Lights photo show
